WPDS FCDS 50 60 70 80 100 120 135 155 175 200 250 蜗轮蜗杆传动齿轮变速箱减速机

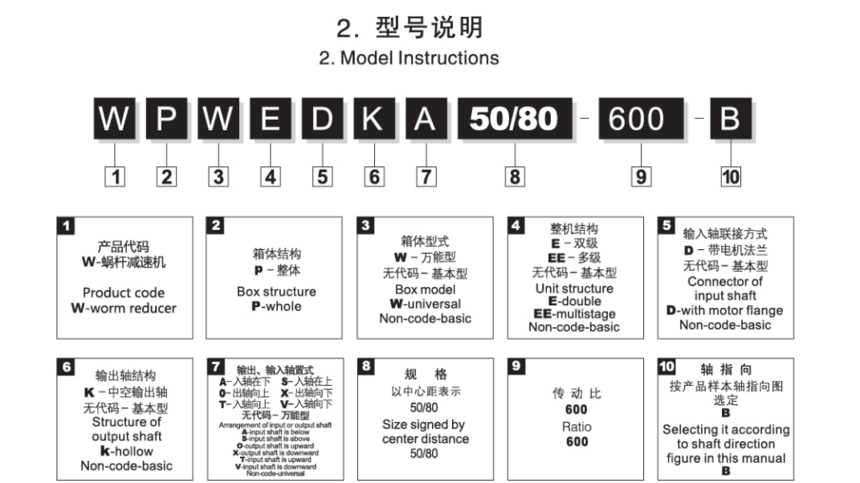

1. 型号
WPDS50; WPDS60; WPDS70; WPDS80; WPDS100; WPDS120; WPDS135; WPDS155; WPDS175; WPDS200; WPDS250

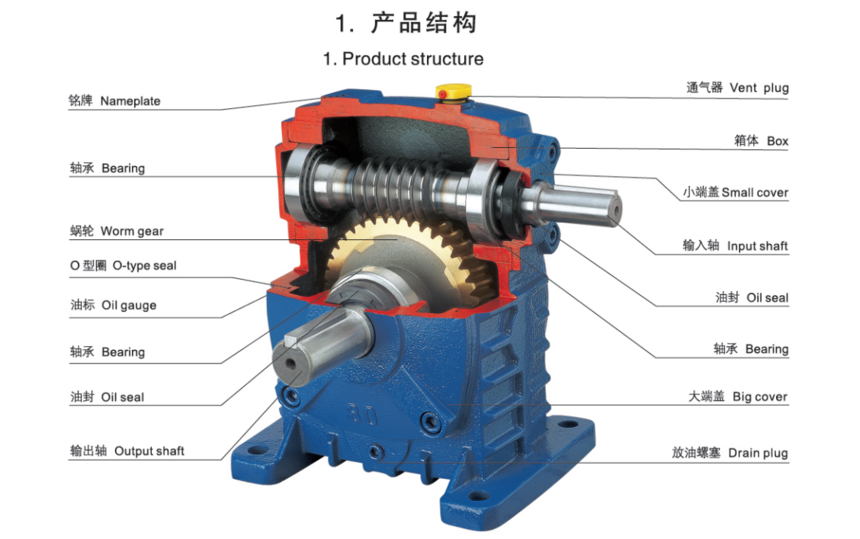

2. 特征
空心输入轴位于实心输出轴上方；
可与IEC电机直接连接使用；
最大可用电机功率15kW;
大部分型号具有良好的自锁性
3. 速比
5:1；10:1；15:1；20:1；25:1；30:1；40:1；50:1；60:1；70:1；80:1；100:1；
4. 参数

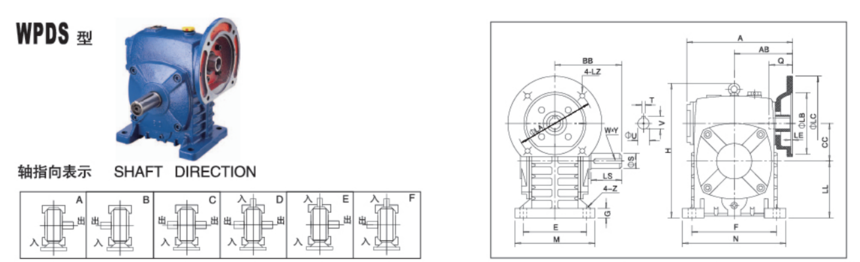

规格 | 输入功率/kW | 减速比 | A | AB | BB | CC | H | HL | LL | M | N | E | F | G | Z | 电机法兰 | 输入孔 | 输出轴 | 质量m/kg |
LA | LB | LC | LE | LZ | Q | U | T×V | LS | S | W×Y |
|
50 | 0.18 | 5
10
15
20
25
30
40
50
60
70
80
100 | 151 | 83 | 97 | 50 | 176 | 50 | 80 | 120 | 140 | 95 | 110 | 15 | 12 | 115 | 95 | 140 | 4 | M8 | 31 | 11 | 4×12.8 | 40 | 17 | 5×3 | 8 |
60 | 0.37 | 167 | 91 | 112 | 60 | 204 | 60 | 90 | 130 | 150 | 105 | 120 | 20 | 12 | 130 | 110 | 160 | 4 | M8 | 33 | 14 | 5×16.3 | 50 | 22 | 6×3.5 | 11 |
70 | 0.37 | 200 | 109 | 131 | 70 | 236 | 70 | 105 | 150 | 190 | 115 | 150 | 20 | 15 | 130 | 110 | 160 | 4 | M8 | 40 | 14 | 5×16.3 | 60 | 28 | 8×4 | 17 |
0.75 | 202 | 111 | 165 | 130 | 200 | M10 | 42 | 19 | 6×21.8 |
80 | 0.75 | 225 | 125 | 142 | 80 | 268 | 80 | 120 | 170 | 220 | 135 | 180 | 20 | 15 | 165 | 130 | 200 | 4.5 | M10 | 48 | 19 | 6×21.8 | 65 | 32 | 10×5 | 22 |
1.5 | 52 | 24 | 8×27.3 |
100 | 1.5 | 280 | 148 | 169 | 100 | 336 | 100 | 150 | 190 | 270 | 155 | 220 | 25 | 15 | 165 | 130 | 200 | 4.5 | M10 | 52 | 24 | 8×27.3 | 75 | 38 | 10×5 | 38 |
120 | 2.2 | 333 | 181 | 190 | 120 | 430 | 120 | 180 | 230 | 320 | 180 | 260 | 30 | 18 | 215 | 180 | 250 | 5 | M12 | 63 | 28 | 8×31.3 | 85 | 45 | 14×5.5 | 64 |
3 |
135 | 3 | 375 | 202 | 210 | 135 | 480 | 135 | 215 | 250 | 350 | 200 | 290 | 30 | 18 | 215 | 180 | 250 | 5 | M12 | 63 | 28 | 8×31.3 | 95 | 55 | 16×6 | 85 |
4 |
155 | 5.5 | 448 | 247 | 252 | 155 | 531 | 135 | 235 | 275 | 390 | 220 | 320 | 35 | 21 | 265 | 230 | 300 | 5 | M12 | 83 | 38 | 10×41.3 | 110 | 60 | 18×7 | 118 |
175 | 5.5 | 481 | 262 | 262 | 175 | 600 | 160 | 260 | 310 | 430 | 250 | 350 | 40 | 21 | 265 | 230 | 300 | 5 | M12 | 83 | 38 | 10×41.3 | 110 | 65 | 18×7 | 165 |
7.5 |
200 | 11 | 543 | 285 | 305 | 200 | 666 | 175 | 290 | 360 | 480 | 290 | 390 | 40 | 24 | 300 | 250 | 350 | 6 | M16 | 114 | 42 | 12×45.3 | 125 | 70 | 20×7.5 | 236 |
250 | 11 | 615 | 330 | 360 | 250 | 800 | 200 | 350 | 460 | 560 | 380 | 480 | 45 | 28 | 300 | 250 | 350 | 6 | M16 | 114 | 42 | 12×45.3 | 155 | 90 | 25×9 | 396 |
15 |
