WPDX FCDX 50 60 70 80 100 120 135 155 175 200 250 蜗轮蜗杆传动齿轮变速箱减速机

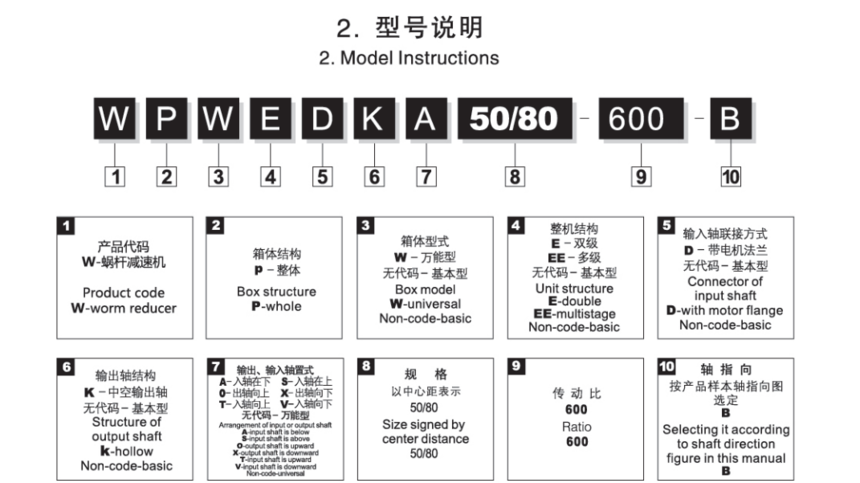

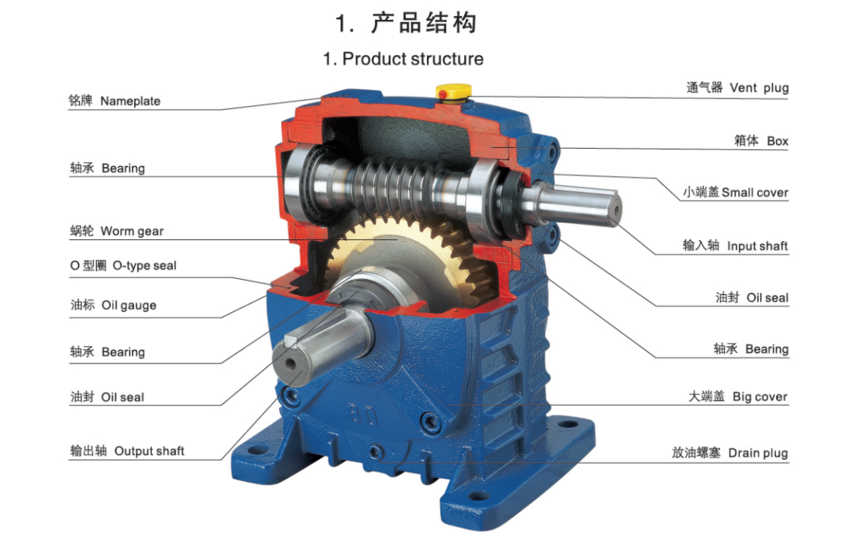

1. 型号
WPDX50; WPDX60; WPDX70; WPDX80; WPDX100; WPDX120; WPDX135; WPDX155; WPDX175; WPDX200; WPDX250;
2. 特点
空心轴法兰输入，实心轴向下输出；
机械结果紧凑，体型小巧，小型高效；
运行平稳、噪音小；
适用性强，安全可靠。
3. 速比
5:1；10:1；15:1；20:1；25:1；30:1；40:1；50:1；60:1；70:1；80:1；100:1
4. 参数

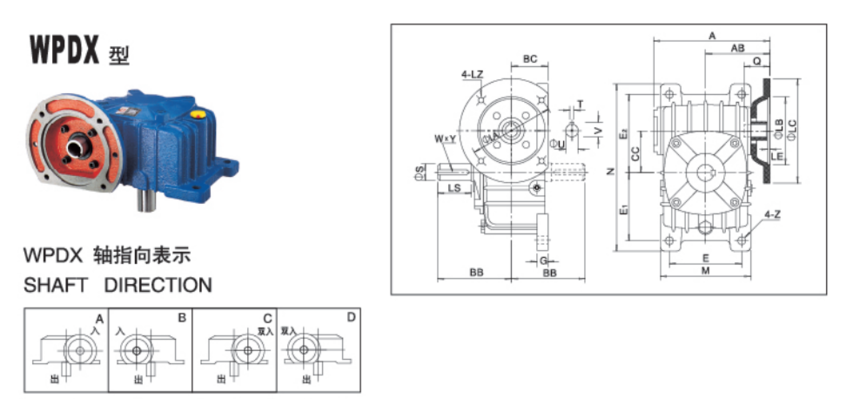

型号 | 功率 | 传动比 | A | AB | BB | BC | CC | M | N | E | E1 | E2 | G | Z | 电机法兰 | 入力孔 | 输出轴 | 重量 |
LA | LB | LC | LE | LZ | Q | U | T*V | LS | S | W*Y |
50 | 0.18 | 5
10
15
20
25
30
40
50
60
70
80
100 | 151 | 83 | 97 | 50 | 50 | 116 | 220 | 90 | 93 | 102 | 15 | 12 | 115 | 95 | 140 | 4 | M8 | 31 | 11 | 4*12.8 | 40 | 17 | 5*3 | 8 |
60 | 0.37 | 167 | 91 | 112 | 55 | 60 | 126 | 260 | 100 | 105 | 120 | 20 | 12 | 130 | 110 | 160 | 4 | M8 | 33 | 14 | 5*16.3 | 50 | 22 | 7*4 | 11 |
70 | 0.37 | 200 | 109 | 131 | 65 | 70 | 156 | 295 | 120 | 120 | 135 | 20 | 15 | 130 | 110 | 160 | 4 | M8 | 40 | 14 | 5*16.3 | 60 | 28 | 7*4 | 17 |
0.75 | 202 | 111 | 165 | 130 | 200 | M10 | 42 | 19 | 6*21.8 |
80 | 0.75 | 225 | 125 | 142 | 70 | 80 | 175 | 320 | 140 | 130 | 150 | 20 | 15 | 165 | 130 | 200 | 4.5 | M10 | 48 | 19 | 6*21.8 | 65 | 32 | 10*4.5 | 22 |
1.5 | 52 | 24 | 8*27.3 |
100 | 2.2 | 280 | 148 | 169 | 90 | 100 | 224 | 375 | 190 | 155 | 180 | 25 | 15 | 165 | 130 | 200 | 4.5 | M10 | 52 | 24 | 8*27.3 | 75 | 38 | 10*4.5 | 38 |
120 | 3 | 333 | 181 | 190 | 100 | 120 | 266 | 450 | 220 | 185 | 215 | 30 | 18 | 215 | 180 | 250 | 5 | M12 | 63 | 28 | 8*31.3 | 85 | 45 | 12*4.5 | 64 |
135 | 3 | 375 | 202 | 210 | 110 | 135 | 306 | 495 | 260 | 210 | 235 | 30 | 18 | 215 | 180 | 250 | 5 | M12 | 63 | 28 | 8*31.3 | 95 | 55 | 15*5 | 85 |
4 |
155 | 5.5 | 448 | 247 | 252 | 140 | 155 | 350 | 590 | 290 | 245 | 295 | 35 | 21 | 265 | 230 | 300 | 5 | M12 | 83 | 38 | 10*41.3 | 110 | 60 | 18*7 | 118 |
175 | 5.5 | 481 | 262 | 262 | 150 | 175 | 394 | 640 | 320 | 267 | 323 | 40 | 21 | 265 | 230 | 300 | 5 | M12 | 83 | 38 | 10*41.3 | 110 | 65 | 18*7 | 165 |
7.5 |
200 | 11 | 543 | 285 | 305 | 175 | 200 | 442 | 710 | 370 | 290 | 360 | 40 | 24 | 300 | 250 | 350 | 6 | M16 | 114 | 42 | 12*45.3 | 125 | 70 | 20*7.5 | 236 |
250 | 11 | 615 | 330 | 360 | 200 | 250 | 510 | 860 | 440 | 350 | 440 | 45 | 28 | 300 | 250 | 350 | 6 | M16 | 114 | 42 | 12*45.3 | 155 | 90 | 25*9 | 396 |
|
