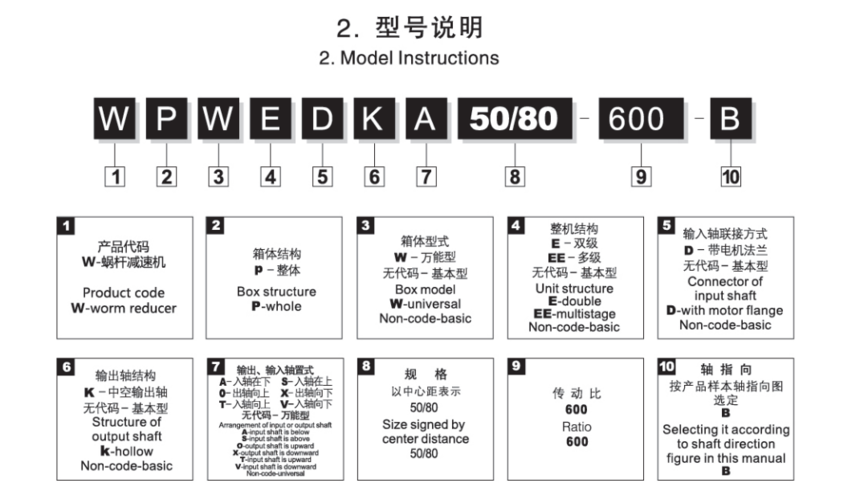

WPWS 蜗轮蜗杆传动齿轮变速箱工厂直销价格减速机
1. 型号
WPWS40; WPWS50; WPWS60; WPWS70; WPWS80; WPWS100; WPWS120; WPWS135; WPWS155; WPWS175; WPWS200; WPWS250
2. 特点

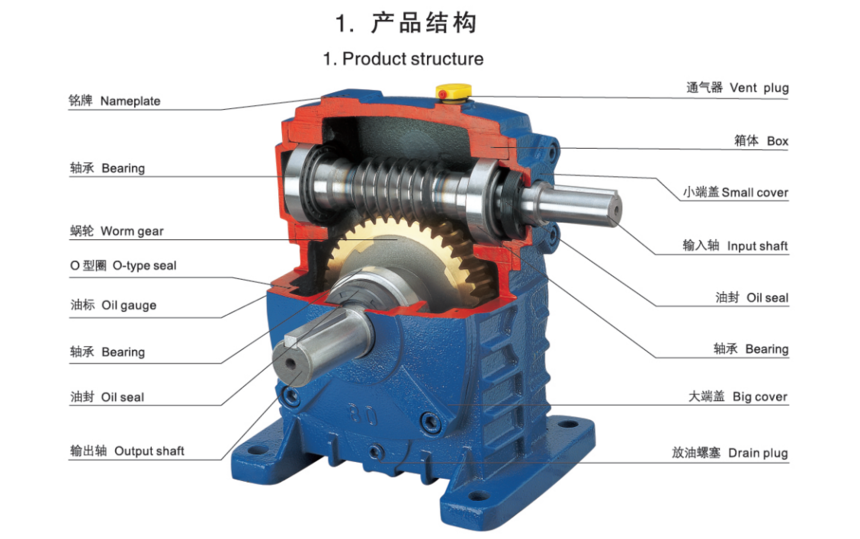

输入轴位于箱体上方，远离底脚，方便使用；
支持双向输入；
模块化机身，方便维护；
能完全替换同类产品；
3. 速比
5:1; 10:1; 15:1; 20:1; 25:1; 30:1; 40:1; 50:1; 60:1; 70:1; 80:1; 100:1;
4. 参数

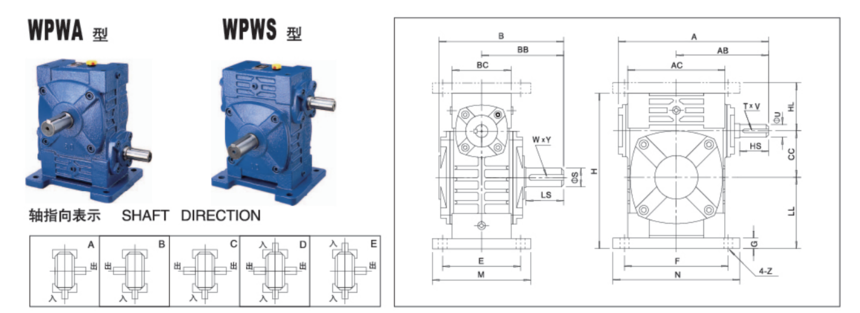

型号 | 传动比 | A | AB | B | BB | AC | BC | CC | HL | LL | H | M | N | E | F | G | Z | 输入轴 | 输出轴 | 重量（kg） |
HS | U | T×V | LS | S | W×Y |
40 | 5
10
15
20
25
30
40
50
60
70
80
100 | 149 | 89 | 124 | 79 | 95 | 61 | 40 | 45 | 60 | 135 | 100 | 130 | 80 | 110 | 10 | 10 | 25 | 12 | 4×2.5 | 28 | 14 | 5×3 | 4.5 |
50 | 175 | 105 | 150 | 95 | 111 | 68 | 50 | 50 | 80 | 165 | 120 | 140 | 95 | 110 | 15 | 12 | 30 | 12 | 4×2.5 | 40 | 17 | 5×3 | 7.5 |
60 | 198 | 120 | 168 | 110 | 127 | 76 | 60 | 60 | 93 | 195 | 130 | 150 | 105 | 120 | 18 | 12 | 40 | 15 | 5×3 | 50 | 22 | 7×4 | 11.5 |
70 | 231 | 140 | 194 | 130 | 152 | 86 | 70 | 73 | 108 | 233 | 150 | 190 | 115 | 150 | 18 | 15 | 40 | 18 | 5×3 | 60 | 28 | 7×4 | 15.5 |
80 | 261 | 160 | 214 | 140 | 169 | 102 | 80 | 83 | 123 | 268 | 170 | 220 | 135 | 180 | 18 | 15 | 50 | 22 | 7×4 | 65 | 32 | 10×4.5 | 24 |
100 | 322 | 178 | 254 | 169 | 216 | 117 | 100 | 100 | 150 | 330 | 190 | 270 | 155 | 220 | 20 | 15 | 50 | 25 | 7×4 | 75 | 38 | 10×4.5 | 39 |
120 | 381 | 229 | 282 | 185 | 256 | 124 | 120 | 120 | 180 | 395 | 230 | 320 | 180 | 260 | 25 | 18 | 65 | 30 | 7×4 | 85 | 45 | 12×4.5 | 57 |
135 | 433 | 260 | 317 | 210 | 296 | 147 | 135 | 135 | 215 | 455 | 250 | 350 | 200 | 290 | 30 | 18 | 75 | 35 | 10×4.5 | 95 | 55 | 16×6 | 85 |
155 | 504 | 300 | 382 | 250 | 345 | 185 | 155 | 135 | 235 | 493 | 280 | 380 | 220 | 320 | 32 | 21 | 85 | 40 | 10×4.5 | 110 | 60 | 16×6 | 110 |
175 | 545 | 322 | 402 | 260 | 374 | 192 | 175 | 160 | 260 | 558 | 310 | 410 | 250 | 350 | 37 | 21 | 85 | 45 | 14×5.5 | 110 | 65 | 18×7 | 152 |
200 | 587 | 350 | 467 | 302 | 412 | 230 | 200 | 175 | 290 | 620 | 355 | 445 | 290 | 390 | 45 | 24 | 95 | 50 | 14×5.5 | 125 | 70 | 20×7.5 | 216 |
250 | 705 | 420 | 552 | 360 | 500 | 285 | 250 | 200 | 350 | 750 | 460 | 560 | 380 | 480 | 50 | 28 | 110 | 60 | 18×7 | 155 | 90 | 25×9 | 350 |
