WPWO 蜗轮蜗杆传动齿轮变速箱工厂直销价格减速机

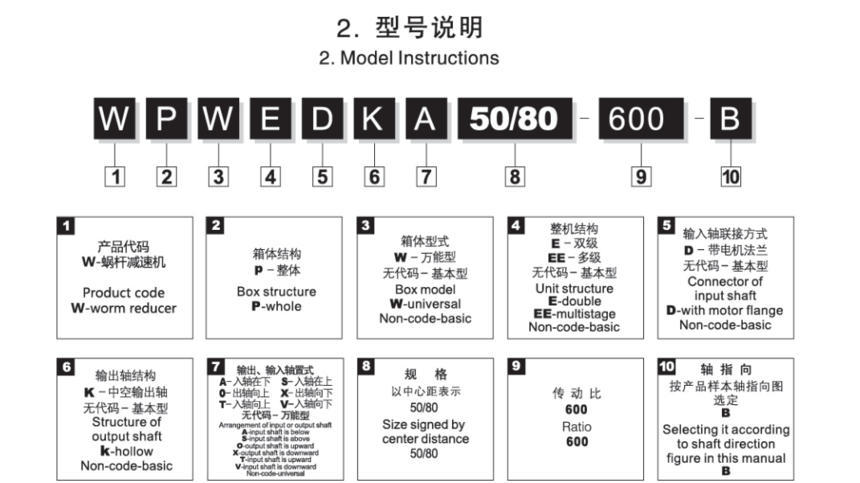

1. 型号
WPWO40; WPWO50; WPWO60; WPWO70; WPWO80; WPWO100; WPWO120; WPWO135; WPWO155; WPWO175; WPWO200; WPWO250

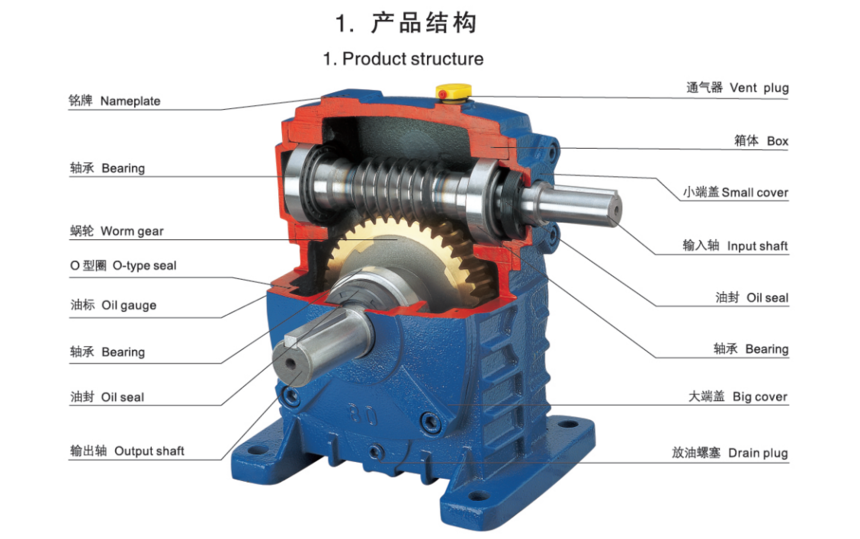

2. 特点
实心输入输出轴；
可实现双向输入设计；
输出轴默认向上；
3. 速比
5:1; 10:1; 15:1; 20:1; 25:1; 30:1; 40:1; 50:1; 60:1; 70:1; 80:1; 100:1;
4. 参数

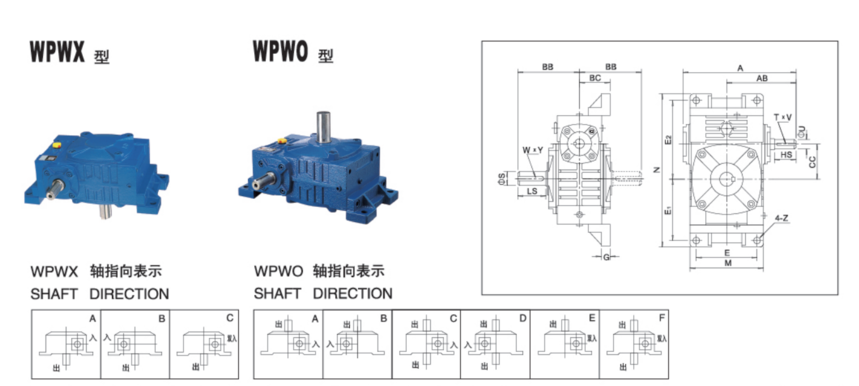

型号 | 传动比 | A | AB | BB | BC | CC | M | N | E | E1 | E2 | G | Z | 输入轴 | 输出轴 | 重量（kg） |
HS | U | T×V | LS | S | W×Y |
40 | 5
10
15
20
25
30
40
50
60
70
80
100 | 149 | 89 | 79 | 45 | 40 | 95 | 187 | 70 | 72 | 97 | 12 | 10 | 25 | 12 | 4×2.5 | 28 | 14 | 5×3 | 5 |
50 | 175 | 105 | 95 | 50 | 50 | 111 | 226 | 90 | 90 | 110 | 14 | 12 | 30 | 12 | 4×2.5 | 40 | 17 | 5×3 | 8 |
60 | 198 | 120 | 110 | 55 | 60 | 127 | 257 | 100 | 102 | 129 | 15 | 12 | 40 | 15 | 5×3 | 50 | 22 | 7×4 | 11 |
70 | 231 | 140 | 130 | 65 | 70 | 152 | 305 | 120 | 120 | 155 | 20 | 15 | 40 | 18 | 5×3 | 60 | 28 | 7×4 | 15.5 |
80 | 261 | 160 | 140 | 70 | 80 | 174 | 350 | 140 | 140 | 180 | 20 | 15 | 50 | 22 | 7×4 | 65 | 32 | 10×4.5 | 24 |
100 | 322 | 178 | 169 | 90 | 100 | 224 | 410 | 190 | 165 | 215 | 22 | 15 | 50 | 25 | 7×4 | 75 | 38 | 10×4.5 | 38 |
120 | 381 | 229 | 185 | 100 | 120 | 264 | 494 | 220 | 195 | 255 | 25 | 18 | 65 | 30 | 7×4 | 85 | 45 | 12×4.5 | 56 |
135 | 433 | 260 | 210 | 110 | 135 | 304 | 559 | 260 | 230 | 285 | 30 | 18 | 75 | 35 | 10×4.5 | 95 | 55 | 16×6 | 84 |
155 | 504 | 300 | 250 | 140 | 155 | 345 | 605 | 290 | 250 | 305 | 35 | 21 | 85 | 40 | 10×4.5 | 110 | 60 | 16×6 | 129 |
175 | 545 | 322 | 260 | 150 | 175 | 374 | 675 | 320 | 273 | 348 | 40 | 21 | 85 | 45 | 14×5.5 | 110 | 65 | 18×7 | 157 |
200 | 587 | 350 | 302 | 175 | 200 | 424 | 749 | 370 | 305 | 390 | 40 | 24 | 95 | 50 | 14×5.5 | 125 | 70 | 20×7.5 | 224 |
250 | 705 | 420 | 552 | 200 | 250 | 510 | 920 | 440 | 375 | 475 | 45 | 28 | 110 | 60 | 18×7 | 155 | 90 | 25×9 | 374 |
