WPWD蜗轮蜗杆传动齿轮变速箱工厂直销价格减速机
1. 型号
WPWD40; WPWD50; WPWD60; WPWD70; WPWD80; WPWD100; WPWD120; WPWD135; WPWD155; WPWD175; WPWD200; WPWD250

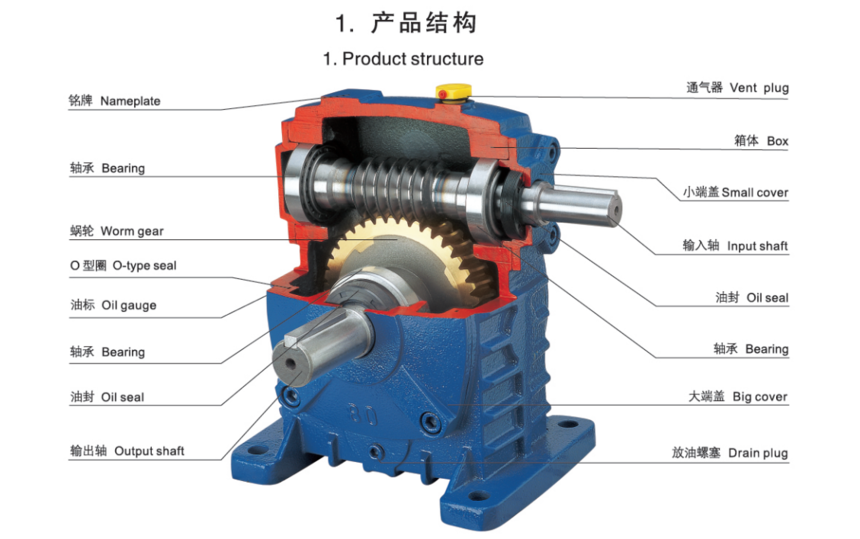

2. 特点
输入法兰空心轴位于输出轴上方
实心轴输出
可带输入法兰与同向输入轴
透气孔位于顶部
3. 速比
5:1；10:1；15:1；20:1；25:1；30:1；40:1；50:1；60:1；70:1；80:1；100:1；
4. 参数

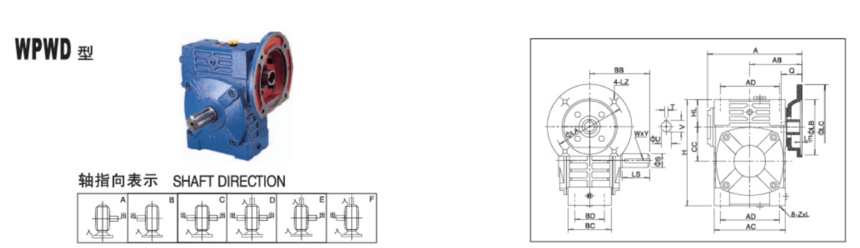

型号 | 入功率（kw） | 传动比 | A | AB | BB | AC | BC | AD | BD | CC | HL | H | Z×L | 电机法兰 | 入力孔 | 出力轴 | 重量（kg） |
LA | LB | LC | LE | LZ | Q | U | T×V | LS | S | W×Y |
40 | 0.12 | 5
10
15
20
25
30
40
50
60
70
80
100 | 135 | 75 | 79 | 95 | 61 | 78 | 42 | 40 | 35 | 125 | M6×12 | 115 | 95 | 140 | 4 | M8 | 31 | 11 | 4×12.8 | 28 | 14 | 5×3 | 4 |
50 | 0.18 | 151 | 83 | 95 | 111 | 68 | 85 | 50 | 50 | 35 | 150 | M6×18 | 115 | 95 | 140 | 4 | M8 | 31 | 11 | 4×12.8 | 40 | 17 | 5×3 | 7 |
60 | 0.37 | 167 | 91 | 110 | 127 | 76 | 105 | 55 | 60 | 42 | 177 | M8×20 | 130 | 110 | 160 | 4 | M8 | 33 | 14 | 5×16.3 | 50 | 22 | 7×4 | 10 |
70 | 0.37 | 200 | 109 | 130 | 152 | 86 | 125 | 65 | 70 | 55 | 215 | M10×25 | 130 | 110 | 160 | 4 | M8 | 40 | 14 | 5×16.3 | 60 | 28 | 7×4 | 14.5 |
0.75 | 202 | 111 | 165 | 130 | 200 | M10 | 42 | 19 | 6×21.8 |
80 | 0.75 | 225 | 125 | 140 | 169 | 102 | 140 | 70 | 80 | 65 | 250 | M12×28 | 165 | 130 | 200 | 4.5 | M10 | 48 | 19 | 6×21.8 | 65 | 32 | 10×4.5 | 23 |
1.5 | 52 | 24 | 8×27.3 |
100 | 1.5 | 280 | 148 | 169 | 216 | 117 | 180 | 90 | 100 | 80 | 310 | M12×30 | 165 | 130 | 200 | 4.5 | M10 | 52 | 24 | 8×27.3 | 75 | 38 | 10×4.5 | 36.5 |
120 | 2.2 | 333 | 181 | 185 | 256 | 124 | 220 | 100 | 120 | 95 | 370 | M14×32 | 215 | 180 | 250 | 5 | M12 | 63 | 28 | 8×31.3 | 85 | 45 | 12×4.5 | 54 |
3 |
135 | 3 | 375 | 202 | 210 | 296 | 147 | 260 | 110 | 135 | 105 | 425 | M16×35 | 215 | 180 | 250 | 5 | M12 | 63 | 28 | 8×31.3 | 95 | 55 | 16×6 | 83 |
4 |
155 | 5.5 | 448 | 247 | 250 | 345 | 185 | 280 | 120 | 155 | 103 | 461 | M16×35 | 265 | 230 | 300 | 5 | M12 | 83 | 38 | 10×41.3 | 110 | 60 | 16×6 | 110 |
175 | 5.5 | 481 | 262 | 260 | 374 | 192 | 320 | 140 | 175 | 123 | 521 | M16×35 | 265 | 230 | 300 | 5 | M12 | 83 | 38 | 10×41.3 | 110 | 65 | 18×7 | 156 |
7.5 |
200 | 11 | 543 | 285 | 302 | 412 | 230 | 360 | 150 | 200 | 130 | 575 | M20×36 | 300 | 250 | 350 | 6 | M16 | 114 | 42 | 12×45.3 | 125 | 70 | 20×7.5 | 222 |
250 | 11 | 615 | 330 | 360 | 500 | 285 | 420 | 190 | 250 | 150 | 700 | M24×42 | 300 | 250 | 350 | 6 | M16 | 114 | 42 | 12×45.3 | 155 | 90 | 25×9 | 376 |
15 |
