WPWDA蜗轮蜗杆传动齿轮变速箱工厂直销价格减速机

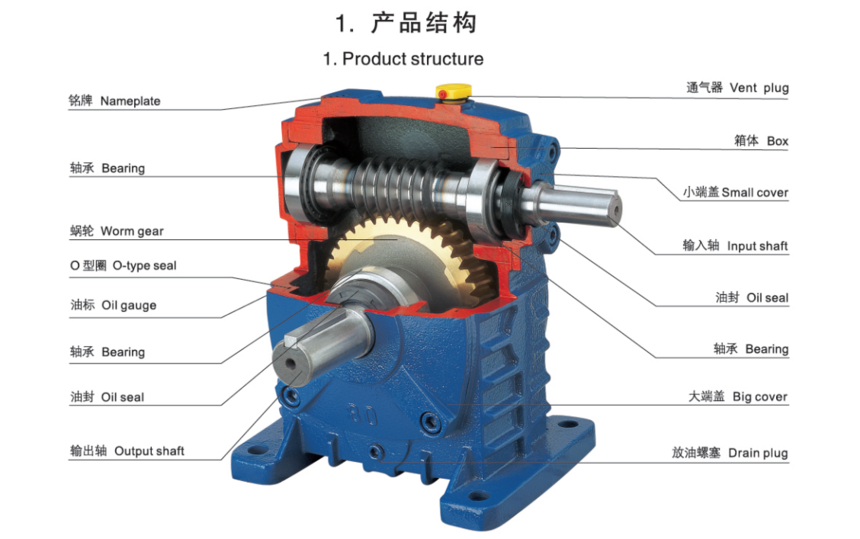

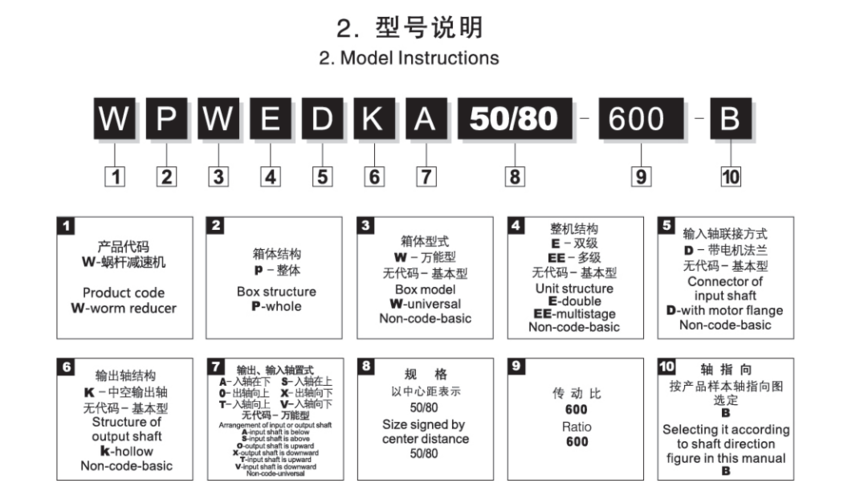

1. 型号
WPWDA40; WPWDA50; WPWDA60; WPWDA70; WPWDA80; WPWDA100; WPWDA120; WPWDA135; WPWDA155; WPWDA175; WPWDA200; WPWDA250
2. 特点
空心轴输入，法兰位于实心输出轴下方
底脚安装
输入功率最高至15kW
3. 速比
5:1; 10:1; 15:1; 20:1; 25:1; 30:1; 40:1; 50:1; 60:1; 70:1; 80:1; 100:1;

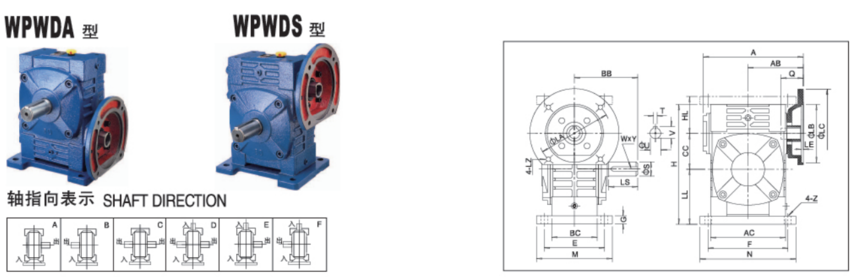

4. 参数
型号 | 入功率（kw） | 传动比 | A | AB | BB | AC | BC | CC | HL | LL | H | M | N | E | F | G | Z | 电机法兰 | 入力孔 | 出力轴 | 重量（kg） |
LA | LB | LC | LE | LZ | Q | U | T×V | LS | S | W×Y |
40 | 0.12 | 5
10
15
20
25
30
40
50
60
70
80
100 | 135 | 75 | 79 | 95 | 61 | 40 | 45 | 60 | 135 | 100 | 130 | 80 | 110 | 10 | 10 | 115 | 95 | 140 | 4 | M8 | 31 | 11 | 4×12.8 | 28 | 14 | 5×3 | 5 |
50 | 0.18 | 151 | 83 | 95 | 111 | 68 | 50 | 50 | 80 | 165 | 120 | 140 | 95 | 110 | 15 | 12 | 115 | 95 | 140 | 4 | M8 | 31 | 11 | 4×12.8 | 40 | 17 | 5×3 | 8 |
60 | 0.37 | 167 | 91 | 110 | 127 | 76 | 60 | 60 | 93 | 195 | 130 | 150 | 105 | 120 | 18 | 12 | 130 | 110 | 160 | 4 | M8 | 33 | 14 | 5×16.3 | 50 | 22 | 7×4 | 12.5 |
70 | 0.37 | 200 | 109 | 130 | 152 | 86 | 70 | 73 | 108 | 233 | 150 | 190 | 115 | 150 | 18 | 15 | 130 | 110 | 160 | 4 | M8 | 40 | 14 | 5×16.3 | 60 | 28 | 7×4 | 17 |
0.75 | 202 | 111 | 165 | 130 | 200 | M10 | 42 | 19 | 6×21.8 |
80 | 0.75 | 225 | 125 | 140 | 169 | 102 | 80 | 83 | 123 | 268 | 170 | 220 | 135 | 180 | 18 | 15 | 165 | 130 | 200 | 4.5 | M10 | 48 | 19 | 6×21.8 | 65 | 32 | 10×4.5 | 26 |
1.5 | 52 | 24 | 8×27.3 |
100 | 1.5 | 280 | 148 | 169 | 216 | 117 | 100 | 100 | 150 | 330 | 190 | 270 | 155 | 220 | 20 | 15 | 165 | 130 | 200 | 4.5 | M10 | 52 | 24 | 8×27.3 | 75 | 38 | 10×4.5 | 41.5 |
120 | 2.2 | 333 | 181 | 185 | 256 | 124 | 120 | 120 | 180 | 395 | 230 | 320 | 180 | 260 | 25 | 18 | 215 | 180 | 250 | 5 | M12 | 63 | 28 | 8×31.3 | 85 | 45 | 12×4.5 | 60 |
3 |
135 | 3 | 375 | 202 | 210 | 296 | 147 | 135 | 135 | 215 | 455 | 250 | 350 | 200 | 290 | 30 | 18 | 215 | 180 | 250 | 5 | M12 | 63 | 28 | 8×31.3 | 95 | 55 | 16×6 | 90 |
4 |
155 | 4.5 | 448 | 247 | 250 | 345 | 185 | 155 | 135 | 235 | 493 | 280 | 380 | 220 | 320 | 32 | 21 | 265 | 230 | 330 | 5 | M12 | 83 | 38 | 10×41.3 | 110 | 60 | 16×6 | 118 |
175 | 5.5 | 481 | 262 | 260 | 374 | 192 | 175 | 160 | 260 | 558 | 310 | 410 | 250 | 350 | 37 | 21 | 265 | 230 | 300 | 5 | M12 | 83 | 38 | 10×41.3 | 110 | 65 | 18×7 | 167 |
7.5 |
200 | 11 | 543 | 285 | 302 | 412 | 230 | 200 | 175 | 290 | 620 | 355 | 445 | 290 | 390 | 45 | 24 | 300 | 250 | 350 | 6 | M16 | 114 | 42 | 12×45.3 | 125 | 70 | 20×7.5 | 237 |
250 | 11 | 615 | 330 | 360 | 500 | 285 | 250 | 200 | 350 | 750 | 460 | 560 | 380 | 480 | 50 | 28 | 300 | 250 | 350 | 6 | M16 | 114 | 42 | 12×45.3 | 155 | 90 | 25×9 | 395 |
15 |
