WPWDX 蜗轮蜗杆传动齿轮变速箱工厂直销价格减速机

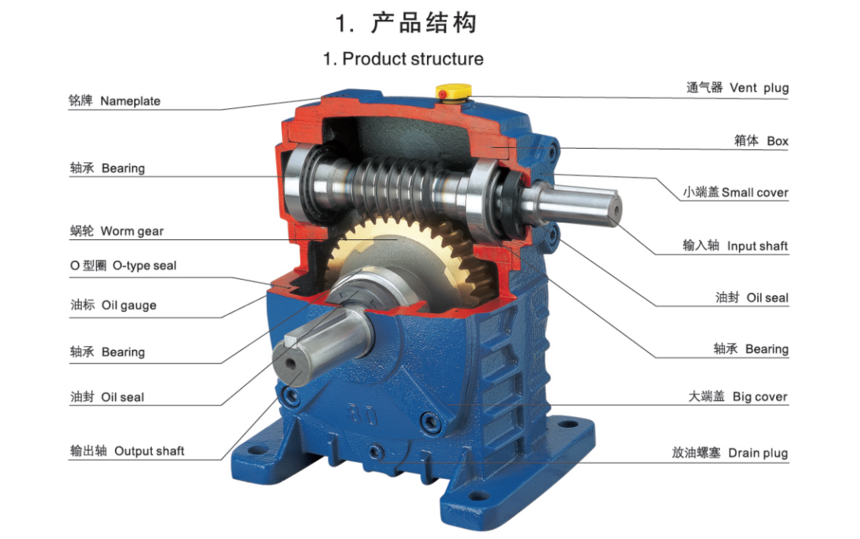

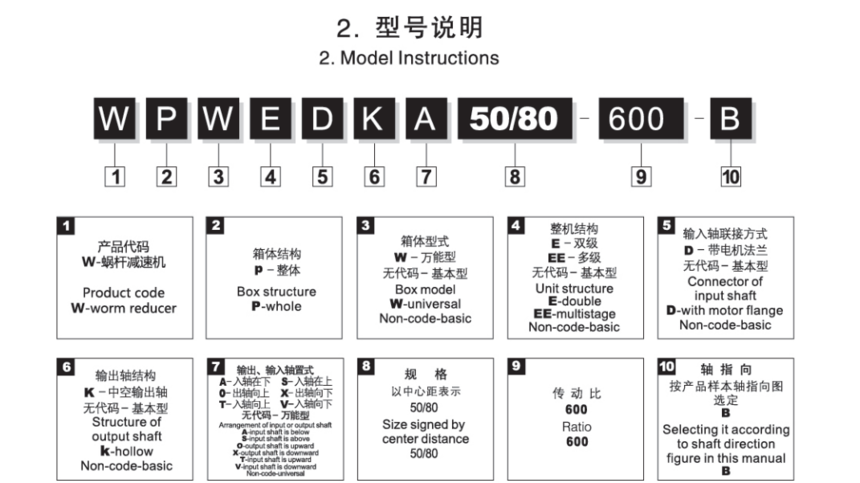

1. 型号
WPWDX40; WPWDX50; WPWDX60; WPWDX70; WPWDX80; WPWDX100; WPWDX120; WPWDX135; WPWDX155; WPWDX175; WPWDX200; WPWDX250
2. 特点
输入法兰位于输出轴左侧；
输出轴向下；
安装底脚可拆卸；
3. 速比
5:1; 10:1; 15:1; 20:1; 25:1; 30:1; 40:1; 50:1; 60:1; 70:1; 80:1; 100:1;
4. 参数

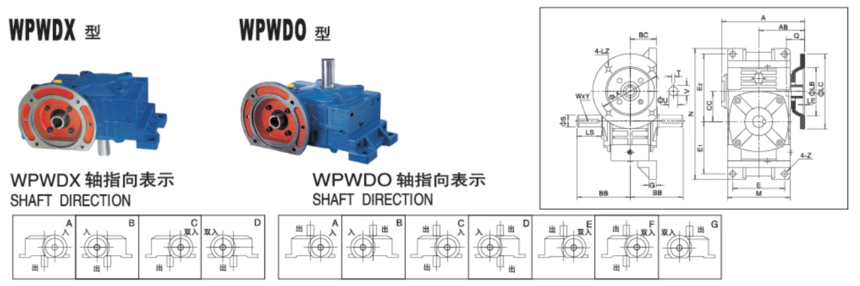

型号 | 入功率（kw） | 传动比 | A | AB | BB | BC | CC | M | N | E | E1 | E2 | G | Z | 电机法兰 | 入力孔 | 出力轴 | 重量（kg） |
LA | LB | LC | LE | LZ | Q | U | T×V | LS | S | W×Y |
40 | 0.12 | 5
10
15
20
25
30
40
50
60
70
80
100 | 135 | 75 | 79 | 45 | 40 | 95 | 187 | 70 | 72 | 97 | 12 | 10 | 115 | 95 | 140 | 4 | M8 | 31 | 11 | 4×12.8 | 28 | 14 | 5×3 | 5.4 |
50 | 0.18 | 151 | 83 | 95 | 50 | 50 | 111 | 226 | 90 | 90 | 110 | 14 | 12 | 115 | 95 | 140 | 4 | M8 | 31 | 11 | 4×12.8 | 40 | 17 | 5×3 | 8.5 |
60 | 0.37 | 167 | 91 | 110 | 55 | 60 | 127 | 257 | 100 | 102 | 129 | 15 | 12 | 130 | 110 | 160 | 4 | M8 | 33 | 14 | 5×16.3 | 50 | 22 | 7×4 | 12 |
70 | 0.37 | 200 | 109 | 130 | 65 | 70 | 152 | 305 | 120 | 120 | 155 | 20 | 15 | 130 | 110 | 160 | 4 | M8 | 40 | 14 | 5×16.3 | 60 | 28 | 7×4 | 17 |
0.75 | 202 | 111 | 165 | 130 | 200 | M10 | 42 | 19 | 6×21.8 |
80 | 0.75 | 225 | 125 | 140 | 70 | 80 | 174 | 350 | 140 | 140 | 180 | 20 | 15 | 165 | 130 | 200 | 4.5 | M10 | 48 | 19 | 6×21.8 | 65 | 32 | 10×4.5 | 26 |
1.5 | 52 | 24 | 8×27.3 |
100 | 1.5 | 280 | 148 | 169 | 90 | 100 | 224 | 410 | 190 | 165 | 215 | 22 | 15 | 165 | 130 | 200 | 4.5 | M10 | 52 | 24 | 8×27.3 | 75 | 38 | 10×4.5 | 40.6 |
120 | 2.2 | 333 | 181 | 185 | 100 | 120 | 264 | 494 | 220 | 195 | 255 | 25 | 18 | 215 | 180 | 250 | 5 | M12 | 63 | 28 | 8×31.3 | 85 | 45 | 12×4.5 | 59 |
3 |
135 | 3 | 375 | 202 | 210 | 110 | 135 | 304 | 559 | 260 | 230 | 285 | 30 | 18 | 215 | 180 | 250 | 5 | M12 | 63 | 28 | 8×31.3 | 95 | 55 | 16×6 | 89 |
4 |
155 | 5.5 | 448 | 247 | 250 | 140 | 155 | 345 | 605 | 290 | 250 | 305 | 35 | 21 | 265 | 230 | 300 | 5 | M12 | 83 | 38 | 10×41.3 | 110 | 60 | 16×6 | 138 |
175 | 5.5 | 481 | 262 | 260 | 150 | 175 | 374 | 675 | 320 | 273 | 348 | 40 | 21 | 265 | 230 | 300 | 5 | M12 | 83 | 38 | 10×41.3 | 110 | 65 | 18×7 | 172 |
7.5 |
200 | 11 | 543 | 285 | 302 | 175 | 200 | 424 | 749 | 370 | 305 | 390 | 40 | 21 | 300 | 250 | 350 | 6 | M16 | 114 | 42 | 12×45.3 | 125 | 70 | 20×7.5 | 246 |
250 | 11 | 615 | 330 | 360 | 200 | 250 | 510 | 920 | 440 | 375 | 475 | 45 | 28 | 300 | 250 | 350 | 6 | M16 | 114 | 42 | 12×45.3 | 155 | 90 | 25×9 | 410 |
15 |
