4KW 5.5HP 三相交流感应异步马达IEC电动机
1. 特点
极数：2极，4极，6极，8极
频率：50赫兹，60赫兹
电压：380V，400V，415V，460V，480V，550V，660V，690V
防护等级：IP54, IP55
绝缘等级：B, F
2. 参数
型号 | 功率 | 电流 | 转速 | 效率 | 服务系数 | Tmax | 噪音 | 重量 |
kW | hp | 380V | 400V | 415V | r/min | η% | cos ϕ | Tn | dB(A) | kg |
100L2-2 | 4 | 5.5 | 8.34 | 7.93 | 7.64 | 2885 | 85.7 | 0.85 | 2.8 | 66 | 24 |
112M1-2 | 4 | 5.5 | 8.34 | 7.93 | 7.64 | 2885 | 85.7 | 0.85 | 2.8 | 66 | 26 |
100L3-4 | 4 | 5.5 | 8.83 | 8.39 | 8.09 | 1430 | 86 | 0.8 | 2.6 | 66 | 27 |
112M1-4 | 4 | 5.5 | 8.83 | 8.39 | 8.09 | 1430 | 86 | 0.8 | 2.6 | 66 | 29 |
132M1-6 | 4 | 5.5 | 11.18 | 10.62 | 10.24 | 965 | 83.6 | 0.65 | 2.5 | 61 | 48 |
160M1-8 | 4 | 5.5 | 9.83 | 9.34 | 9 | 715 | 82.4 | 0.75 | 2.9 | 68 | 59 |

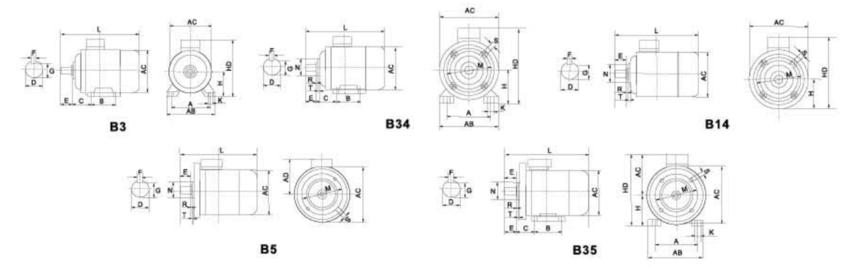

3. 尺寸
型号 | 安装尺寸 | 法兰尺寸 |
| IMB14 | IMB5 | AB | AC | AD | HD | L |
| A | B | c | D | E | F | G | H | K | R | S | T | M | N | P | R | S | T |
100 | 160 | 140 | 63 | 28 | 60 | 8 | 24 | 100 | 12 | 0 | M8 | 3.5 | 215 | 180 | 250 | 0 | 15 | 4 | 206 | 206 | 150 | 250 | 376 |
112 | 190 | 140 | 70 | 28 | 60 | 8 | 24 | 112 | 12 | 0 | M8 | 3.5 | 215 | 180 | 250 | 0 | 15 | 4 | 222 | 228 | 170 | 285 | 400 |
132S | 216 | 140 | 89 | 38 | 80 | 10 | 33 | 132 | 12 | 0 | M10 | 4 | 265 | 230 | 300 | 0 | 15 | 4 | 257 | 267 | 190 | 325 | 460 |
132M | 216 | 178 | 89 | 38 | 80 | 10 | 33 | 132 | 12 | 0 | M10 | 4 | 265 | 230 | 300 | 0 | 15 | 4 | 257 | 267 | 190 | 325 | 500 |
160M | 254 | 210 | 108 | 42 | 110 | 12 | 37 | 160 | 15 | 0 | M12 | 4 | 300 | 250 | 350 | 0 | 19 | 5 | 320 | 330 | 255 | 420 | 615 |
160L | 254 | 254 | 108 | 42 | 110 | 12 | 37 | 160 | 15 | 0 | M12 | 4 | 300 | 250 | 350 | 0 | 19 | 5 | 320 | 330 | 255 | 420 | 675 |
